The Lime Cycle: The Oldest Wall Finish Is the Most Modern Choice

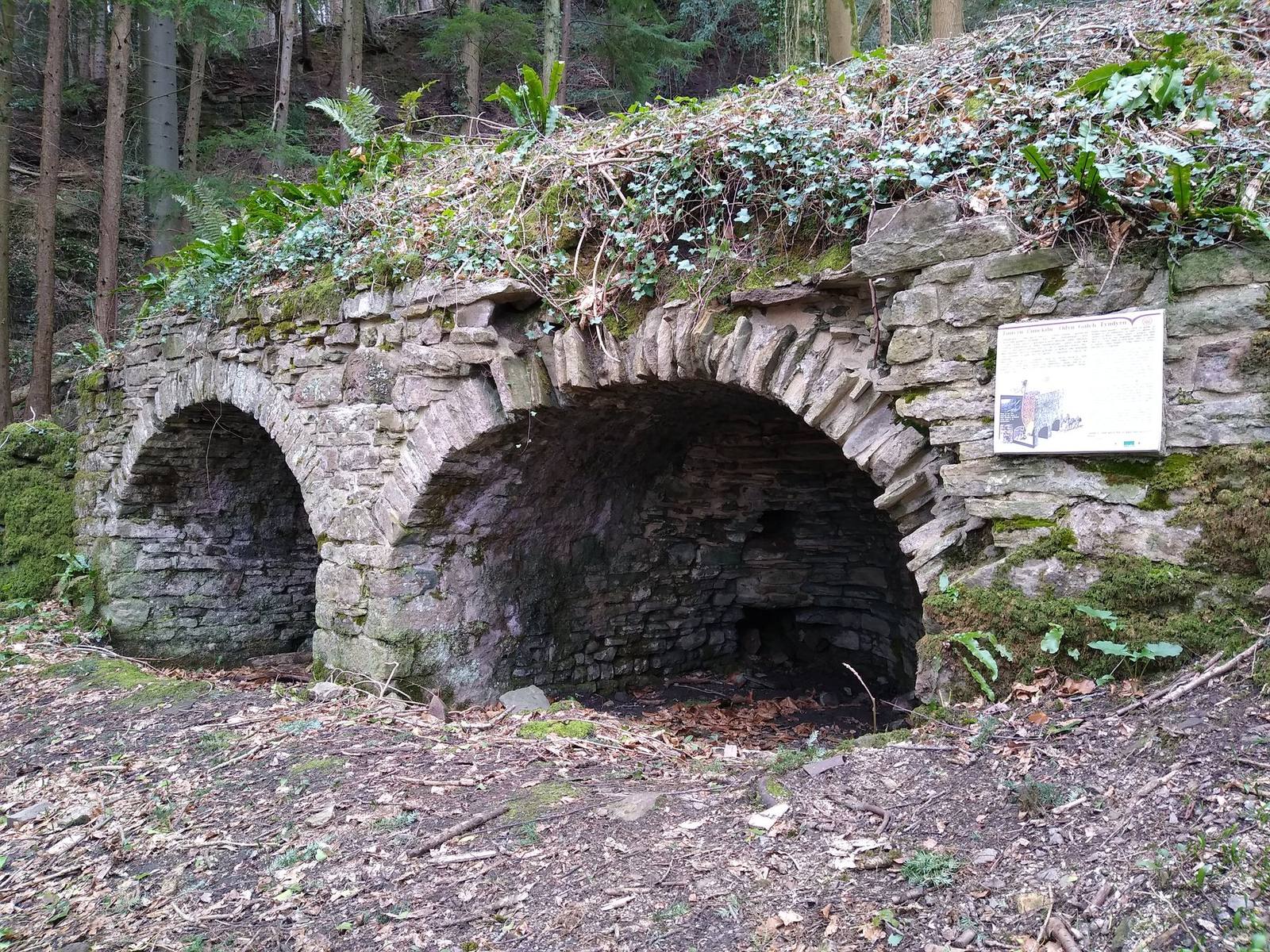

Every wall in this story begins in a kiln. At Tintern, in the Wye valley, the stone shell of a limekiln still stands where limestone was burned from the 1700s until 1902. The chemistry it served has not changed since antiquity. Limestone goes in. Fire drives off its carbon dioxide. What comes out is quicklime, and what happens next is the oldest piece of building chemistry still in daily use: slaked with water, the quicklime becomes lime putty; the putty is mixed with aggregate and laid on the wall; and over months and years it drinks carbon dioxide back out of the air and turns to limestone again. Burn it, slake it, lay it, let the air finish the work. That is the lime cycle, and a lime-plastered wall is not a coating. It is stone, returned to stone by way of fire and water.

A lime-plastered wall is not a coating. It is stone, returned to stone by way of fire and water.

The reason this matters to anyone choosing a finish today is breathability. A lime plaster is porous at a microscopic scale, and moisture moves through it rather than being trapped behind it. The wall can take up water vapour from the room and release it again; it can dry out after a wet winter instead of holding the damp against the masonry. Portland cement, by contrast, is strong, rigid and effectively impermeable, and those virtues become vices on an old wall: moisture trapped behind a cement render has nowhere to go but into the stone or brick, and the decay it accelerates is the reason conservation practice now treats cement on historic fabric as a mistake to be undone. Gypsum plaster, the default of the modern interior, has its own failure mode on a breathable wall, encouraging condensation and mould where lime would have managed the moisture quietly.

Stone, fire, water, air

The cycle repays a closer look, because each stage explains a property of the finished wall. Burning limestone above about 850 degrees Celsius drives off carbon dioxide and leaves calcium oxide, quicklime. Add water and the reaction is immediate and exothermic: the quicklime slakes to calcium hydroxide, and left to mature under water for months it becomes lime putty, smooth and fat, improving with age. Mixed with sand or other aggregate and laid in coats, it begins the long final stage, carbonation, reabsorbing carbon dioxide from the air and hardening back into calcium carbonate. The wall becomes, chemically, what the quarry yielded. Few building materials can say that their end state is their starting material.

The older method, hot mixing, skips the putty stage: quicklime is mixed directly with damp aggregate, and the heat of slaking goes into the mix. It is the method the old manuals describe and the one conservation masons have revived, partly because the resulting mortar seems tougher and more autogenous, able to heal hairline cracks as free lime continues to carbonate. Whether hot-mixed or putty-based, the essential character is the same: a mortar weaker than the masonry it beds, so the wall can move without the joints failing, and permeable, so the wall can breathe.

Three coats, two thousand years

Vitruvius, writing in the first century BC, prescribed the system: successive coats, each finer than the last, the render, the float and the setting coat, laid over days so each could take up before the next went on. Two thousand years later the prescription still describes best practice, and the evidence for its durability is not theoretical. Lime mortars and plasters from the Roman period are still performing, still bonded, still breathing. The modern cement render that replaced lime in the twentieth century cannot make that claim; its service life is measured in decades, and its failures are the ones now being stripped off historic walls at considerable expense.

The craft of laying it is unhurried by nature. Lime cannot be rushed with heat the way gypsum can; it sets by carbonation, which needs air and time, and the plasterer works with the material’s pace rather than against it. Three coats, each keyed to the last, each allowed its interval. The result has a depth that a single-coat modern finish cannot imitate: the surface is never perfectly flat, never perfectly uniform, and light moves across it the way it moves across stone.

Plaster as ornament

Lime plaster was never only a background. Pargeting, the decorative lime plasterwork of eastern England, turns the wall surface itself into ornament: patterns combed, stamped or modelled in the setting coat while it is still workable. On Church Street in Saffron Walden, historic houses still wear their pargeted decoration, a reminder that the craft once treated a facade the way a cabinetmaker treats a drawer front. The interior equivalent is the decorative plasterwork of ceilings and cornices, run in situ by hand, a trade that survived into the twentieth century and is now being relearned.

This is the part of the story the photographs of kilns do not tell: lime plaster is a decorative art as much as a building science, and its revival is being driven as much by the eye as by the building pathologist.

The return

The return began, as revivals often do, with repair. Conservation practice spent the late twentieth century learning, expensively, what cement does to old walls, and the guidance that emerged converges on the same point: like for like. Repair a lime building with lime. But the revival has outgrown repair. In new high-end interiors, lime plaster is specified for the qualities no modern finish offers: the softness of its light, the depth of its surface, the fact that it can be patched invisibly because it is the same material all the way through, and the quiet virtue that it will still be there, still sound, when the fashion that specified it is forgotten.

There is a larger argument too, and it is the cycle itself. A lime wall participates in a loop: stone burned, slaked, laid, recarbonated, stone again. At the end of the building’s life the plaster can return to the ground it came from without leaving anything the ground did not already contain. The modern finishes it replaces leave gypsum board and polymer paints, materials with no way home. The oldest wall finish turns out to be the most modern choice, not because it is old but because the chemistry never stopped being true.

Stand in front of the Tintern kiln and the scale of the thing is the point. For two centuries stone went into that arch and quicklime came out, feeding walls across the valley. The kiln is a ruin now, but the cycle it served is back at work, on walls being plastered this week, by people who have relearned what Vitruvius wrote down: burn it, slake it, lay it in three coats, and let the air finish the work.
