Jean Prouve: The House That Could Be Built in a Day

Jean Prouve (1901-1984) was a French metalworker, designer, and constructeur who had no formal architectural training. During the Second World War he was active in the French Resistance, and at the Liberation in 1944 he was named mayor of Nancy. From 1947 he ran the Ateliers Jean Prouve at Maxeville, the factory from which his demountable houses would come. His proposition was radical in its simplicity: that a house could be a kit of parts, made in a workshop, assembled on site in a day, and no worse for it.

Prouve did not design houses and then work out how to build them. He designed the building process, and the houses followed.

Prouve did not design houses and then work out how to build them. He designed the building process, and the houses followed.

The word constructeur is worth keeping in French, because English has no exact equivalent. Prouve was not an architect who dabbled in making, nor a manufacturer who dabbled in design. He thought in sheet metal the way other designers think in pencil. The portal frame, the folded panel, the bolted joint: these were his vocabulary, and the houses are sentences in it.

Maxeville

The works at Maxeville matter as much as any single house. From 1947 Prouve ran the Ateliers Jean Prouve there, a factory in which the demountable houses were designed and fabricated under his own eye. He did not send drawings to a builder; he made the building in the building. The workshop was the drawing board, the prototype shop, and the production line at once, and it is the reason the houses feel inevitable rather than assembled.

This is why they read as sentences rather than paragraphs. Every element, the portal frame, the floor panel, the wall panel, the roof panel, was conceived for the machines that would fold it and the two people who would bolt it together on site. The Maison Tropicale, designed and manufactured at Maxeville and shipped flat-packed by cargo plane, was the furthest reach of the same logic: a house that left the factory as a complete kit and arrived as a building waiting to be unfolded.

The 6x6: emergency housing, 1944-45

At the end of the war, the French Ministry of Reconstruction commissioned Prouve to design movable pavilions as emergency housing for the sinistres, the civilians whose homes had been destroyed in eastern France. The Ateliers Jean Prouve were commissioned to deliver 800 units of 6 by 6 metres for Lorraine and the Franche-Comte.

The 6 by 6 metre footprint, 36 square metres, was divided into three rooms, habitable on the day of assembly; the brief was later enlarged to 6 by 9 metres. The structure was Prouve's patented axial portal frame, the portique, carrying a modular kit of floor, wall, and roof panels, designed so that two people could assemble it in a day with simple tools. Materials were steel, wood, and aluminium; wartime metal shortages forced wooden facade elements, built up as vertical, horizontal, or diagonal fir boarding with glass-wool insulation. The workshop drawings survive with their plan numbers: 9486 of 10 October 1944, 9651 of 14 March 1945, 9681 of 10 May 1945.

The numbers matter because they are modest. Thirty-six square metres, three rooms, two people, one day, simple tools. There is no rhetoric in the specification, only arithmetic. Prouve understood that emergency housing fails not for lack of design but for lack of logistics, and he designed the logistics first.

An early model of the 6x6, the Maison Demontable, now stands as a permanent installation in the public garden of Ladbroke Hall in London, unveiled by the Carpenters Workshop Gallery in 2024 after restoration.

The portal frame

The portal frame is the whole of Prouve's architecture in a single idea. A patented axial frame, the portique, carries the entire load, which means the walls carry nothing and can be anything: panels of wood, steel, or aluminium, fixed or sliding, arranged to suit the climate and the programme. The structure is a skeleton; the enclosure is a wardrobe. Once that separation is understood, the house becomes a kit: floor panels, wall panels, roof panels, all modular, all bolted, designed so that two people could assemble a house in a day with simple tools.

The system is what survives, not the sizes. It stretches from the thirty-six square metres of the 6x6 to the sixty-four of the 8x8 and on to the much larger spans of the Tropicale without changing its grammar. Prouve designed the building process and the houses followed; every subsequent dimension was the same sentence spoken louder.

The 8x8: a larger development, 1945

The 8x8 demountable of 1945 developed the same portal-frame system at 8 by 8 metres, 64 square metres. Only two examples are known to survive. When Galerie Patrick Seguin offered one at Design Miami in 2013, it was reported at $2.3 million: the price of a prototype that history had decided was art.

The 8x8 shows the system stretching. Sixty-four square metres is a real house, not a shelter, and the portal frame stretches with it. That only two survive is a measure of how the postwar world treated its prototypes: used hard, and recognized late.

The Maison Tropicale, 1949-51

The most ambitious of Prouve's demountables was designed and manufactured at Maxeville as a prototype for housing and civic buildings in France's African colonies. Three prototypes were erected: one in Niamey, Niger, and two in Brazzaville, then the capital of Middle Congo, now the Republic of the Congo. The Niamey house was the largest, about 26 by 10 metres; the Brazzaville pair, about 10 by 18 metres and 10 by 14 metres and joined by a bridge, stood elevated on steel columns. A fourth example, produced for Douala in Cameroon, was never traced.

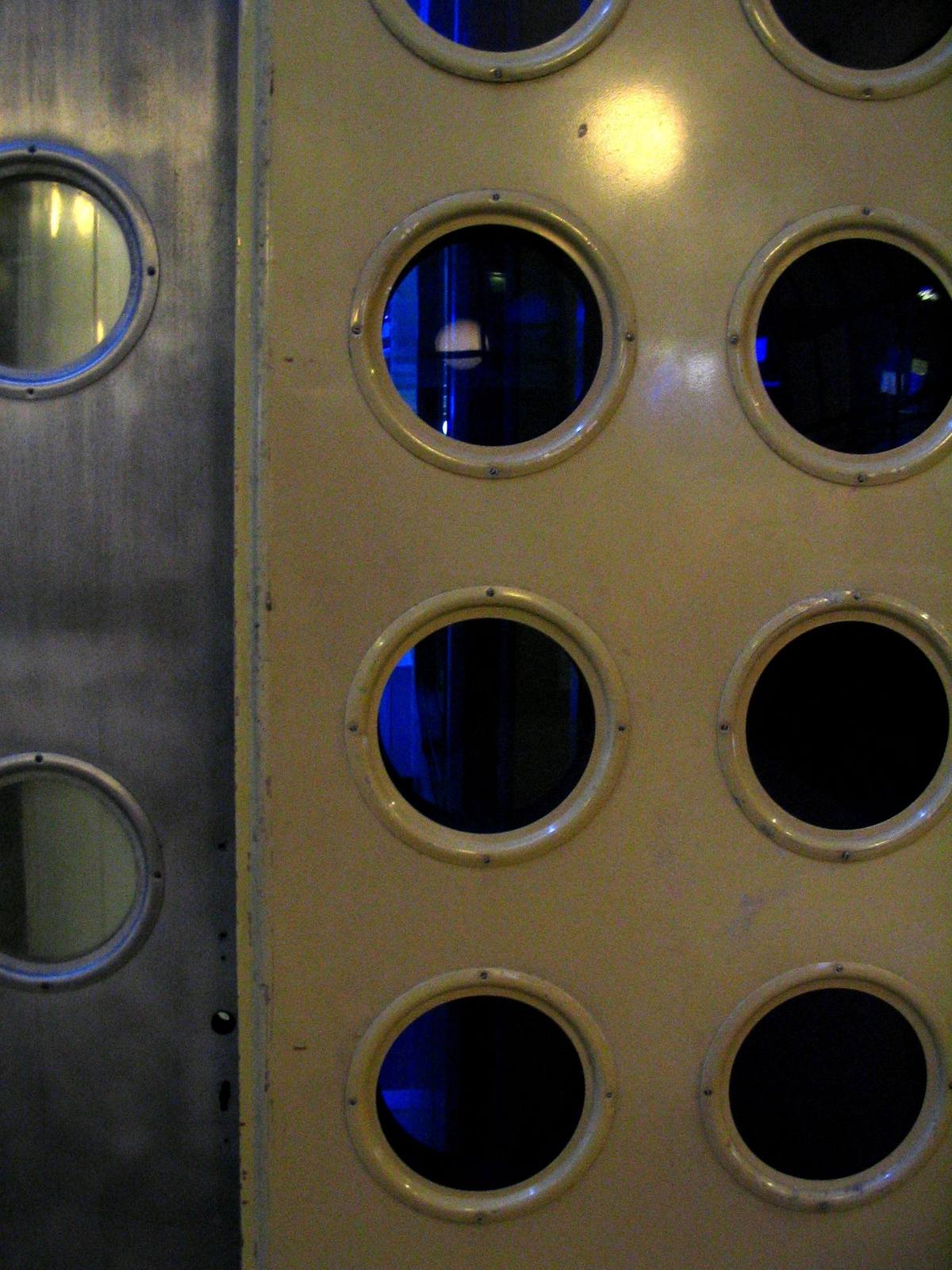

The houses were made of folded sheet steel and aluminium panels throughout, shipped flat-packed (by cargo plane) and bolted together on site. Each pairs a steel-framed inner cell of fixed and sliding aluminium panels, pierced with blue-glass portholes against the ultraviolet light, with a wide surrounding veranda, adjustable aluminium sun-screens, the brise-soleil, and a ventilated double roof that draws hot air out of the living space. It is a complete climate system in metal, designed for the tropics and built in Lorraine.

The project never reached mass production. The prototypes cost no less than local construction, and their industrial aesthetic did not appeal to French colonial administrators. Prouve's factory logic met a political logic, and lost.

Rediscovery

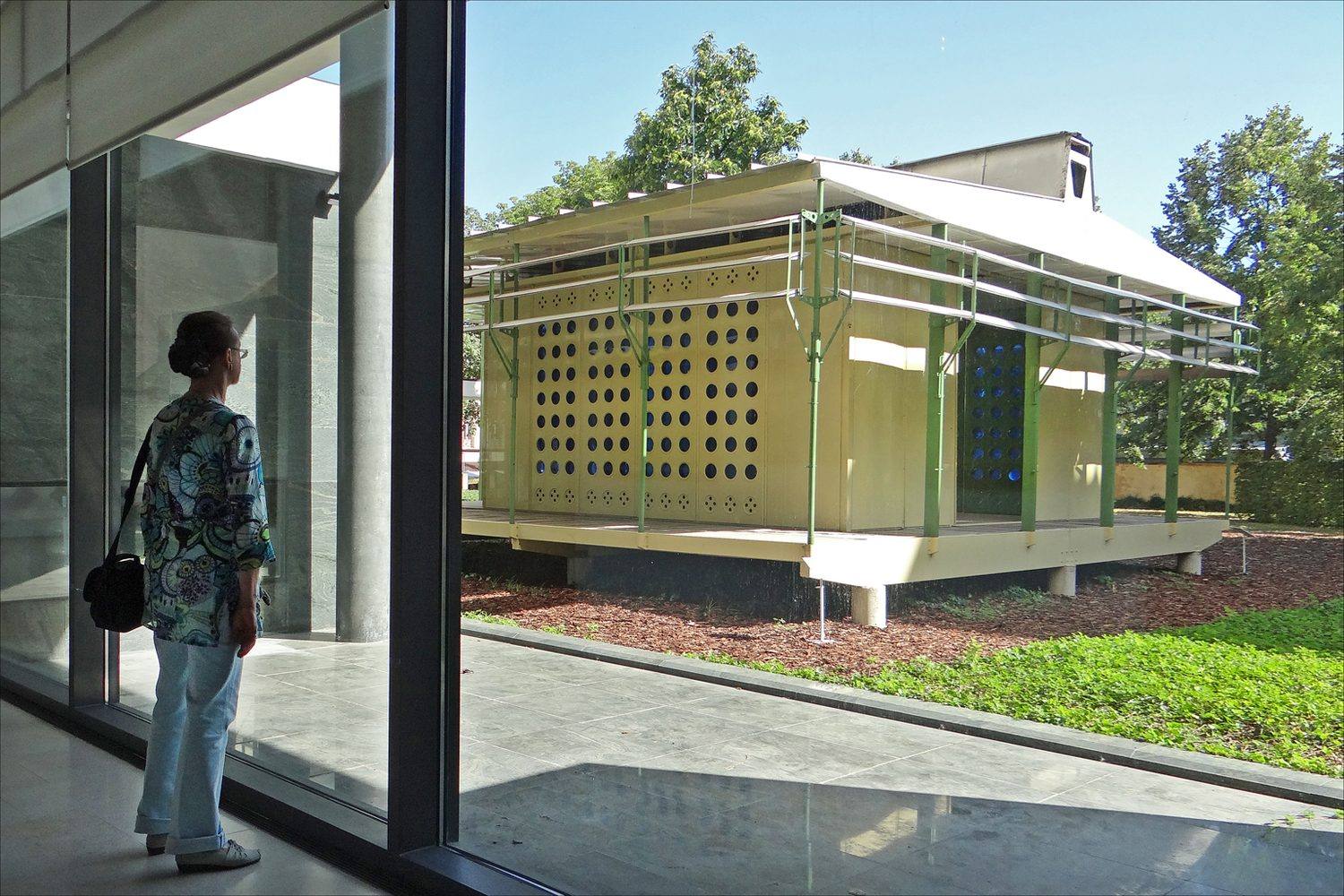

The Brazzaville houses stood for nearly fifty years until a 1996 French Ministry of Culture heritage inventory led to their purchase and repatriation by the dealer Eric Touchaleaume. One was bought by the collector Robert Rubin, restored at a cost of over $1 million, and donated to the Centre Pompidou in 2005. It has since been shown at two Los Angeles venues in 2005, on the Pompidou's fifth-floor terrace in Paris from 2007 to 2009, at the Musee des beaux-arts de Nancy in 2012, and in the Jardin des structures of the Musee de l'histoire du fer at Jarville, near Nancy, in 2014; the dealer Patrick Seguin later reported it installed at the Kanal-Centre Pompidou space in Brussels. Its precise current installation is not confirmed beyond these reports.

The rediscovery story is itself a study in value. The houses were bought as scrap, or near it, and repatriated by a dealer who understood what they were. The million-dollar restoration of the Rubin house and the $4.96 million auction price of the Balazs house are the market's way of admitting that it missed the point the first time. Prouve designed for the many; the few ended up owning the evidence.

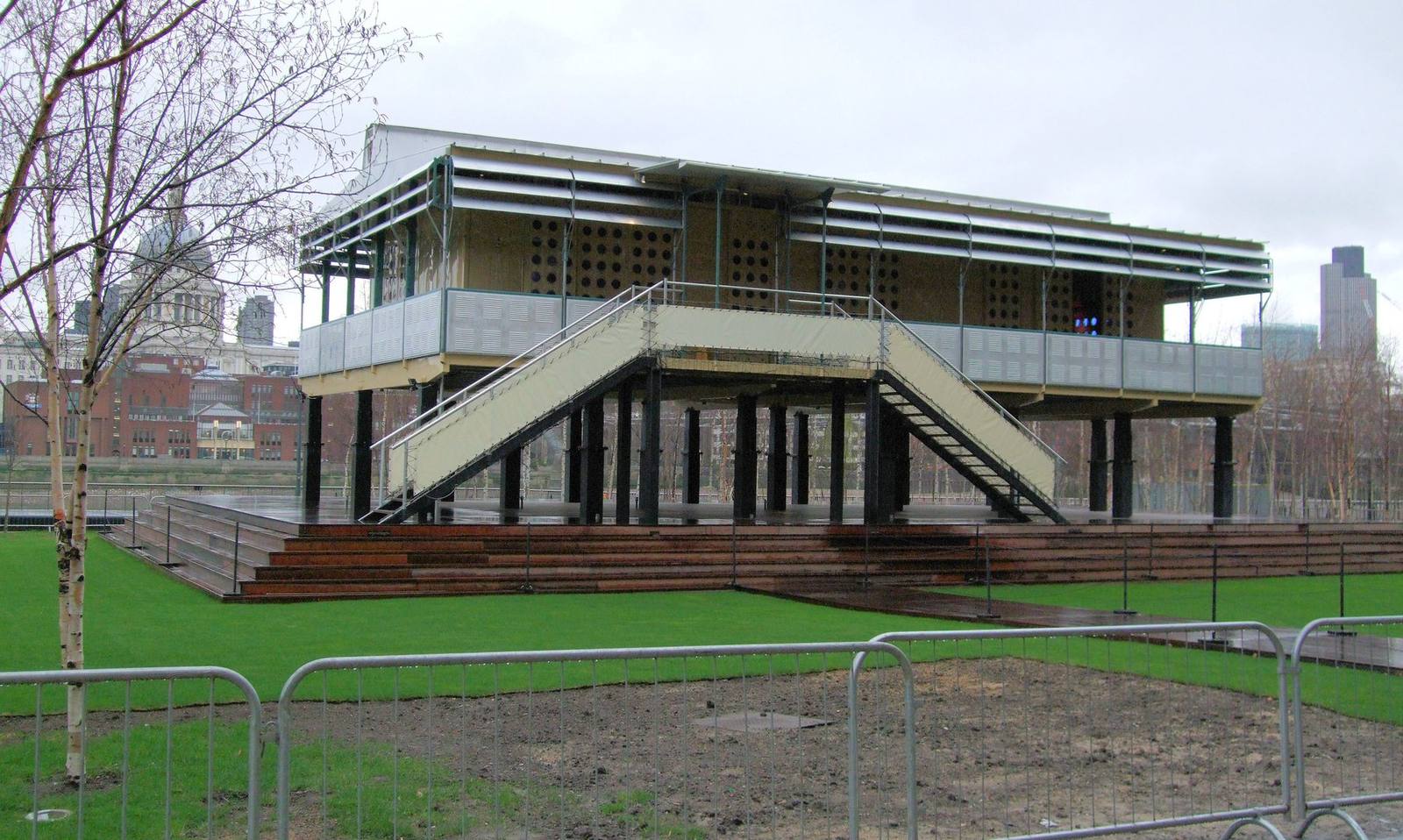

The larger Brazzaville house was bought by the hotelier Andre Balazs at Christie's New York on 5 June 2007 for $4.96 million, and was erected outside Tate Modern in London from 5 February to 13 April 2008 for the Design Museum's exhibition Jean Prouve: The Poetics of the Technical Object. Its current whereabouts are not publicly documented. The surviving demountables now live the double life of all successful prototypes: museum pieces that were designed never to need a museum.

The auction market

The market has now spoken, repeatedly and in large figures. Galerie Patrick Seguin offered an 8x8 at Design Miami in 2013 at a reported $2.3 million. The collector Robert Rubin spent over $1 million restoring a Brazzaville house before donating it to the Centre Pompidou in 2005. The hotelier Andre Balazs paid $4.96 million for the larger Brazzaville house at Christie's New York on 5 June 2007. These are not the prices of buildings. They are the prices of prototypes that history has decided are art.

The hinge was 1996, when a French Ministry of Culture heritage inventory led the dealer Eric Touchaleaume to buy the Brazzaville houses and bring them back to France. They had stood for nearly fifty years, bought as near-scrap and repatriated as masterpieces. The project that never reached mass production, the prototypes that cost no less than local construction, ended up in the Centre Pompidou and outside Tate Modern. The factory logic was right; the politics were wrong. The market took half a century to say so.

Why architects still study Prouve

Architects value Prouve for the same reason builders once valued him: he thought with his hands. The constructeur, the man with no formal architectural training who designed the building process first, is the model every serious prefabricator now follows, knowingly or not. The portal frame, the folded panel, the bolted joint: these are not period details but a working vocabulary, and the kit of parts has returned to the centre of architectural practice as offsite fabrication has become an industry rather than a heresy.

There is a second reason, and it is contemporary. A demountable house can be taken apart, moved, and re-erected, which makes it an ancestor of everything architecture now claims to want: buildings that leave no trace, materials that keep their value, construction that adapts. The Brazzaville houses were dismantled in Congo, shipped to France, and rebuilt in Paris, Nancy, and London; the Maison Demontable at Ladbroke Hall was restored and installed in a London garden in 2024. Prouve built for disassembly before the phrase existed. Architects study him because he already solved the problems they are paid to solve now.

The demountable houses did not solve the housing crisis, and Prouve knew they would not. But they established a proposition that has never gone away: that a building can be precise, beautiful, and quick, and that the factory and the building site are not enemies. Every serious prefabricated house since is, knowingly or not, an answer to the portal frame.
